“Environmental Monitoring Probe” is commonly used by UK data-centre managers, IT administrators, and server-room engineers looking for reliable environmental sensors that integrate directly with their power infrastructure. In most cases, this search refers to the Eaton Environmental Monitoring Probe Gen 2 (EMPDT1H1C2)—a compact but powerful accessory designed specifically for Eaton UPS systems and rack PDUs.
Modern IT infrastructure relies heavily on stable environmental conditions. Excess heat, humidity fluctuations, water leaks, or unexpected equipment failures can cause costly downtime or permanent hardware damage. Environmental Monitoring Probe help prevent these problems by continuously measuring conditions inside server racks and sending alerts when thresholds are exceeded.
Released as Generation 2 around 2021, the Eaton EMP has remained the industry standard environmental probe for Eaton ecosystems through 2026. Its small size, plug-and-play installation, and ability to integrate with email alerts, SNMP monitoring, and automatic UPS shutdown procedures make it a trusted solution for both enterprise data centres and smaller office server rooms.
This comprehensive UK Environmental Monitoring Probe Guide (2026) explains everything you need to know about the Eaton EMP Gen 2, including features, specifications, compatibility, installation, pricing, and alternatives available in the UK market.
What an Environmental Monitoring Probe Actually Is
An Environmental Monitoring Probe is a small sensor device designed to measure critical environmental factors within IT infrastructure environments. These probes monitor conditions such as temperature, humidity, water leaks, and physical access events, helping administrators detect problems before they escalate into major failures.
The Eaton Environmental Monitoring Probe Gen 2 (EMPDT1H1C2) is one of the most widely deployed devices in this category for organisations using Eaton hardware.
Compact Design for Rack Monitoring

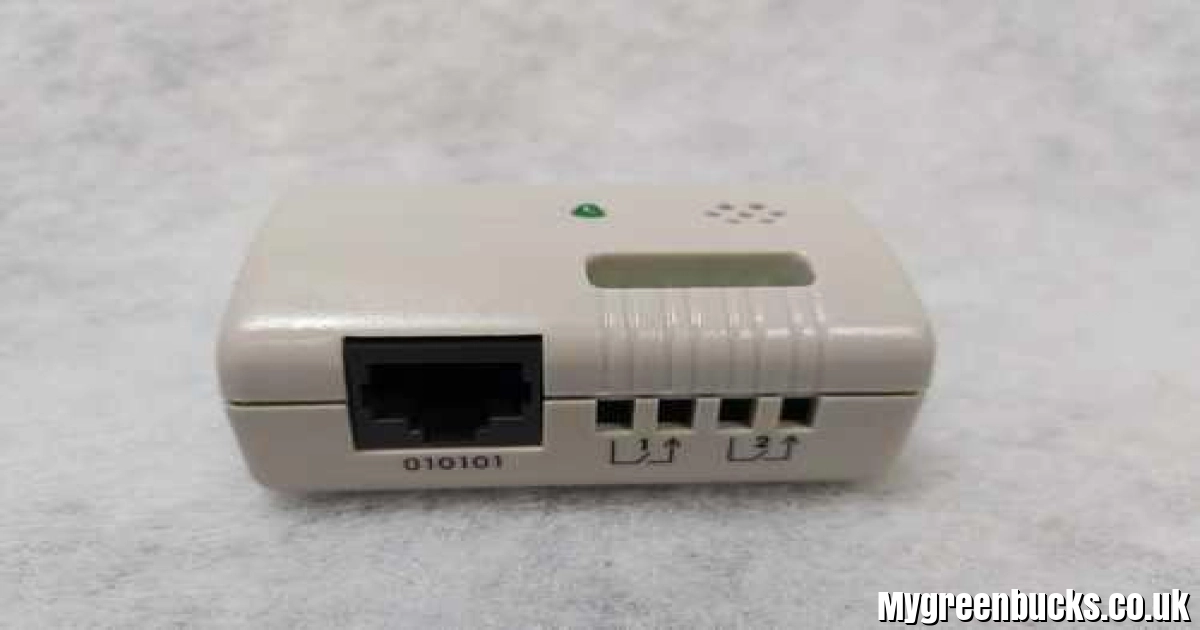

The probe itself is extremely compact—roughly the size of a large matchbox—allowing it to be installed almost anywhere inside a server rack.
Despite its small footprint, it provides several important monitoring capabilities:
-
Temperature monitoring
-
Humidity monitoring
-
Two dry-contact sensor inputs
These additional dry-contact inputs allow integration with external devices such as:
-
Water leak detectors
-
Smoke alarms
-
Door open sensors
-
Security switches
When connected to a compatible Eaton UPS network card or intelligent PDU, the probe sends continuous environmental data to the management interface.
Real-Time Monitoring and Alerts
All data collected by the probe is accessible through the UPS or PDU web interface, where administrators can view:
-
Real-time readings
-
Historical graphs
-
Alarm thresholds
-
Event logs
If conditions exceed predefined limits, the system can automatically trigger:
-
Email alerts
-
SNMP traps
-
Automated shutdown procedures
This proactive monitoring can prevent server overheating, condensation damage, and infrastructure outages.
Eaton Environmental Monitoring Probe Gen 2 Specifications
The EMP Gen 2 was designed to provide accurate environmental data while remaining simple to deploy.
Key Technical Specifications
| Specification | Details |
|---|---|
| Model | EMPDT1H1C2 |
| Generation | Gen 2 |
| Sensors | Temperature, Humidity |
| Additional Inputs | 2 × Dry Contact |
| Temperature Range | 0–70°C |
| Humidity Range | 10–90% RH |
| Dimensions | 57.6 × 37.6 × 29.3 mm |
| Weight | 34 g |
| Power Source | Powered via Network-M2 card |
| Connectivity | RJ45 connection |
| Certifications | CE Approved |
The probe uses industrial-grade MEMS sensors that are sufficiently accurate for server room environmental monitoring.
Daisy-Chaining Capability
One of the biggest improvements introduced in Gen 2 is the ability to daisy-chain multiple probes.
Administrators can connect:
Up to three probes per host device
This allows monitoring of multiple rack locations, such as:
-
Top of the rack (hot air zone)
-
Middle section (equipment level)
-
Bottom of the rack (cool air intake)
This multi-zone visibility helps identify temperature stratification issues inside racks.
Compatibility with Eaton UPS & PDU Systems
Before purchasing an environmental monitoring probe, UK buyers must confirm compatibility with their existing infrastructure.
Supported Eaton Hardware
The EMPDT1H1C2 probe works with:
-
Eaton Gigabit Network-M2 card
-
Eaton G3, G3HD, and G3+ rack PDUs
-
Eaton UPS systems with compatible firmware
Common compatible UPS models include:
-
Eaton 5P
-
Eaton 5PX
-
Eaton 9PX
-
Eaton 9SX
-
Eaton 9PXM
These systems allow environmental data to integrate directly with UPS monitoring software.
Unsupported Systems
The probe does not work with older Eaton Network-MS cards or with equipment from other manufacturers.
This means it cannot integrate directly with:
-
APC UPS systems
-
Vertiv / Liebert equipment
-
Non-Eaton PDUs
Because of this limitation, the EMP Gen 2 is primarily intended for organisations already operating within the Eaton power management ecosystem.
Installation and Setup (Simple 5-Minute Process)
One of the key reasons the Eaton EMP Gen 2 is so popular in the UK is its extremely simple installation process.
Unlike many environmental monitoring systems that require complex wiring or specialist installers, the EMP is completely plug-and-play.
Step-by-Step Installation
-
Connect the probe
Plug the RJ45 cable into the EMP port on your Eaton Network-M2 card or compatible PDU. -
Optional daisy-chain setup
If you are using multiple probes, connect them using standard RJ45 cables. -
Connect dry-contact sensors
Attach external sensors (such as water leak detectors) to the green screw terminal block. -
Access the web interface
Log into the UPS or PDU management portal. -
Automatic detection
The system automatically recognises the probe and begins monitoring.
Mounting Options
Each unit includes a small mounting kit containing:
-
Screws
-
Cable ties
-
3M adhesive pads
These allow the probe to be securely attached inside racks, cabinets, or server room walls.
Benefits of Environmental Monitoring in UK Server Rooms
Environmental monitoring is especially important for UK organisations operating server infrastructure in offices or older buildings.
Preventing Heat-Related Failures
Server equipment generates significant heat. Without proper monitoring, hot spots inside racks can go unnoticed until hardware begins to fail.
An environmental probe ensures administrators receive alerts before temperatures reach dangerous levels.
Humidity and Condensation Control
The UK climate can cause humidity fluctuations, particularly in older buildings without modern HVAC systems.
High humidity may lead to:
-
Condensation inside equipment
Monitoring humidity levels helps maintain safe conditions.
Integration with Power Management Software
The Eaton EMP integrates directly with Eaton Intelligent Power Manager (IPM) software.
This enables organisations to:
-
Monitor environmental conditions across multiple racks
-
Generate historical reports
-
Trigger automated shutdown events during emergencies
This type of monitoring is often required to meet basic data centre compliance and uptime standards.
UK Price, Availability & Alternatives (2026)
Environmental monitoring probes are widely available through UK IT suppliers and infrastructure specialists.
Typical UK Pricing
| Supplier | Typical Price |
|---|---|
| RS Components | ~£145.90 (ex VAT) |
| Critical Power Supplies | £110–£150 |
| Ballicom | £100–£160 |
| Technical Reality | £120–£150 |
Including VAT, most UK buyers pay around:
£133 – £175 per probe
The device is often bundled with new Eaton UPS or PDU purchases, which can reduce costs.
Alternative Environmental Monitoring Solutions
Although the Eaton probe dominates the Eaton ecosystem, other options exist:
| Product | Typical Price | Notes |
|---|---|---|
| CertaUPS C-EMP | £80–£110 | Lower cost but fewer features |
| Uniti Power SPYEMP | Similar price | Compatible with some power systems |
| Samsara environmental sensors | Much higher | Enterprise wireless monitoring |
| Aico Ei1025 systems | Expensive | Used in building safety monitoring |
Despite these alternatives, most UK Eaton users simply choose the official EMP Gen 2 due to guaranteed compatibility and simple setup.
Conclusion
The Eaton Environmental Monitoring Probe Gen 2 (EMPDT1H1C2) remains one of the most practical and widely used environmental sensors for server racks and IT infrastructure in the UK.
Its combination of plug-and-play installation, real-time monitoring, email alerts, and UPS integration makes it an essential accessory for organisations running Eaton UPS systems or intelligent PDUs.
By continuously monitoring temperature, humidity, and external sensors, the probe helps prevent expensive downtime caused by overheating, condensation, or infrastructure failures.
For UK businesses operating server rooms, small data centres, or network cabinets, adding an environmental monitoring probe is one of the simplest and most cost-effective ways to protect critical IT equipment.
In many cases, a small device costing around £150 can prevent thousands of pounds in hardware damage or lost productivity.
FAQs
1. What does an environmental monitoring probe do?
It monitors temperature, humidity, and external sensors inside server racks or IT rooms and sends alerts if conditions exceed safe levels.
2. What systems are compatible with the Eaton EMP Gen 2?
It works with Eaton Gigabit Network-M2 cards, compatible rack PDUs, and UPS models such as the Eaton 5P, 5PX, and 9PX.
3. How many probes can be connected to one UPS?
Up to three probes can be daisy-chained to a single compatible host device.
4. How much does the Eaton environmental probe cost in the UK?
Typical prices range from £133 to £175 including VAT, depending on the supplier.
5. Is installation complicated?
No. The probe is plug-and-play, and installation usually takes less than five minutes.
